ScanEagle VTOL
ScanEagle VTOL
The UAS that invented the agile ISR category,
Now with VTOL
ScanEagle paired with FLARES VTOL brings the smallest possible operational footprint
while preserving maximum endurance and best-in-class, modular, payload capability.
Long-Endurance
ScanEagle’s 18+ hours of endurance carrying 11 lbs of Insitu best-in-class payloads means you’ll never lose sight of what’s most important.
Small Footprint
FLARES Vertical Take-off and Landing kit requires minimal deck or land space and requires zero aircraft modifications.
Truly Mobile
ScanEagle VTOL system enables rapid repositioning and operation in tight spaces. Transportable via standard pickup truck or cargo van and ready to launch within 30 minutes.
Get the full specs and details.
FLARES Specifications
Weight
- Max ScanEagle weight 62 lb (28 kg)
Temperature Range
- -20º to +45º C
Wind Range
- 0-30 knots
- 10 knot gusts
Full Mission Set Packout
- 463L pallet: 108 x 88 x 62 in
(2.74 x 2.24 x 1.57 m)
ScanEagle Specifications
Size and Weight
- Max takeoff weight: 58 lb / 26.5 kg
- Max payload weight: 11 lb / 5 kg
- Payload power: up to 150 W
- Length: 5.6ft / 1.71m
- Wingspan: 10.2 ft / 3.1 m
Sensor and Data Options
- Turret: EO, EO950 (EO camera and EO telescope), MWIR, Dual Imager (EO and MWIR)
- Video Datalink: Analog, digital encrypted
- C2 Datalink: Encrypted, unencrypted
Performance
- Endurance: 18 hours
- Ceiling: 19,500 ft / 5,950 m
- Max horizontal speed: 80 knots / 41.2 m/s
- Engine: Heavy fuel (JP-5 or JP 8) or C-10 gasoline engine
How does ScanEagle with VTOL work?
LAUNCH
FLARES mated with ScanEagle climbs vertically to altitude (500′ AGL), dashes into the wind, and releases ScanEagle into fixed-wing flight (<5 minutes).
- FLARES returns to land/ship launch point
- In case of an aborted launch, FLARES returns and lands vertically with ScanEagle still attached.
RECOVERY
FLARES takes off vertically tethered, hosting capture rope into the air (~300′). ScanEagle catches on vertical line via wing hook (<5 min)
- FLARES descends as the capture rope is wheeled onto the winch in MARS (Mast Augmented Recovery System) and ScanEagle settles onto the top of the mast.
- Unloaded FLARES lands.
Full Range, Endurance, and Capacity
ScanEagle with VTOL offers 18+ hours of endurance carrying 11 lb of Insitu’s best-in-class modular payloads. Range and endurance enable persistent detection, classification, and tracking.
Increased Portability and Self-Sufficiency
ScanEagle with VTOL enables rapid repositioning and operation in tight spaces on land or ship.
Available for Current ScanEagle Customers
FLARES VTOL kit works with existing ScanEagle UAS.
Common Ground Control Station
Small, modular, and expandable GCS with multiple configurations minimizes footprint and maximizes compatibility. Also controls non-Insitu UAV.
Trusted Performance
With over 1.3 million operational hours, ScanEagle has been continuously deployed on land since 2004 and at sea since 2005. ScanEagle is truly battle-tested – deployed around the globe, flying in the harshest environments for a variety of US and international partners.
Interoperability
Compliant with relevant NATO and industry standards to allow interoperability across joint, coalition, and allied forces.
Payload Flexibility
Field-swappable payloads can be rapidly reconfigured to support a wide range of missions—electronic warfare, ISR, comms relay, overwatch and targeting.
Ready to learn more?
Related Systems
Operate ScanEagle VTOL with these configurable payloads.
Common Ground Control Station (cGCS)
Common Ground Control System is small, modular, expeditionary, and offers true C2 on-the-move.
Learn More
In the News
Related Stories
ScanEagle Assists in Response to Hijack of M/V Ruen
Key to situational awareness has been the EUNAVFOR UAV, SCAN EAGLE, based on ESPS VICTORIA, which continues to punctually collect data from the merchant vessel.
Read More »QE-1 Squadron employs the ScanEagle in support of Special Operations
On November 22, the 1st Remotely Piloted Aircraft Squadron (QE-1) carried out a Surveillance and Reconnaissance flight in support of the INCURSEX exercise, conducted by the Marine Special Operations Battalion (Tonelero Battalion).
Read More »The Scaneagle project takes off from the flight deck of the Bergamini ship
The month of November 2023 saw the completion of the first flight of a remotely piloted aircraft carried out on board a Navy unit (APRM ScanEagle ).
Read More »
Integrator VTOL
Integrator VTOL
Battle-Tested Endurance, Now With VTOL
The long-endurance Integrator is the most versatile UAS in its class.
With our new VTOL kit, you don’t sacrifice endurance and capability for expeditionary.
Long-Endurance
With up to 27.5 hours of endurance, you’ll never lose sight of what’s most important.
Small Footprint
FLARES Vertical Take-off and Landing kit requires minimal deck space, can launch in high seas and gusty winds, and requires zero aircraft modifications.
Customizable Payloads
Maximize every mission with six payload spaces and up to 40 pounds of cutting-edge sensors. Modularity supports a wide range of missions including electronic warfare, ISR, and comms relay
Get the full specs and details.
FLARES Specifications
Weight
- Max Integrator weight 165 lb (75kg)
Temperature Range
- -20º to +45º C
Wind Range
- 0-30 knots
- 10 knot gusts
Deck Motion
- +/- 10 degrees roll
- +/- 5 degrees pitch
Full Mission Set Packout
- 463L pallet: 108 x 88 x 62 in
(2.74 x 2.24 x 1.57 m)
Integrator Specifications
Size and Weight
- Length: 8.2 ft / 2.5m
- Wingspan: 16 ft / 4.9 m
- Max takeoff weight: 165 lb / 74.8 kg
- Max payload weight: 40 lb / 18 kg
Sensor Options
- Alticam 14 (enhanced ISR telescope and targeting)
- EO telescope (high-zoom day FMV)
- Dual Imager (MWIR/EO day & night FMV)
- ViDAR (maritime surface search)
- Laser designator / pointer / rangefinder
- Other integrated sensors
Payload Integration
- Onboard power: 350 W for payloads
- Onboard connectivity: Ethernet
Performance
- Endurance: up to 27.5 hours (16+ hours with full 40lb payload)
- Ceiling: 19,500 ft / 5,944 m
- Max horizontal speed: 90+ knots / 46 m/s
- Engine: EFI using JP-5/JP-8 fuel
How does Integrator VTOL work?
LAUNCH
FLARES, mated with Integrator, climbs vertically to altitude (500′ AGL), dashes into the wind, and releases Integrator into fixed-wing flight.
- FLARES returns to land/ship via GPS
- In case of an aborted launch, FLARES returns and lands vertically with Integrator still attached.
RECOVERY
FLARES takes off vertically tethered, hosting capture rope into the air (~300′). Integrator catches on vertical line via wing hook (<5 min)
- FLARES descends as the capture rope is wheeled onto the winch in MARS (Mast Augmented Recovery System) and Integrator settles onto the top of the mast.
- Unloaded FLARES lands on deck.
Full Range, Endurance, and Capacity
Integrator VTOL offers over 16 hours of endurance carrying a full 40 pounds of Insitu’s best-in-class modular payloads. Up to 24 hours of endurance is available with less payload weight. Range and endurance enable persistent detection, classification, and tracking.
Increased Portability and Self-Sufficiency
Integrator VTOL enables rapid repositioning and operation in tight spaces on land or ship.
Optimized for Shipboard Operation
FLARES is built to operate in high seas and gusty winds, with limited launch and stowage spaces in mind. Launches from small vessel helicopter decks in high pitch and roll environments.
Common Ground Control Station
Small, modular, and expandable GCS with multiple configurations minimizes footprint and maximizes compatibility. Also controls non-Insitu UAV.
Trusted Performance
Integrator and its variants have been truly battle-tested and deployed around the globe, flying in the harshest environments for a variety of US and international partners.
Interoperability
Compliant with relevant NATO and industry standards to allow interoperability across joint, coalition, and allied forces.
Encrypted Communication
Encrypted command and control data link enables a line-of-sight operating radius beyond 50 nm / 92.6 km, with electromagnetic shielding to support customized communications and radio frequency sensor payloads.
Ready to learn more?
Related Systems
Operate Integrator with these configurable payloads.
Catalina
Power your media enterprise with Catalina server-side software – Insitu’s sophisticated multimedia server
Learn More
In the News
Related Stories
Insitu Announces its High Seas, Long Endurance Integrator VTOL Uncrewed Aircraft System at Navy League’s Sea-Air-Space Global Maritime Expo
Integrator VTOL launches vertically on ships or land without sacrificing payload capacity or endurance.
Read More »Insitu Sets Company Record for Longest Flight at 25.5 hours with its Integrator Uncrewed Aircraft System
Insitu, A Boeing Company, recently set a company record for the longest duration flight with a 25.5-hour sortie with its Integrator Uncrewed Aircraft System (UAS) on an operational mission.
Read More »Insitu Announces Kinetic Capability for the Integrator Uncrewed Aircraft System (UAS)
Insitu, A Boeing Company, announced a munitions program for its Integrator UAS, which adds a highly sought-after strike capability to the platform’s unmatched payload portfolio and class-leading 24-hour flight endurance.
Read More »
RQ-21A
RQ-21A
Program of Record for the U.S. Navy and U.S. Marine Corps
Expeditionary, payload flexible and the most versatile UAS in its class.
Modularity
Supports wide range of missions including electronic warfare, ISR, and communications relay
Flexibility
Runway-independent design easily operates from land or at sea
Persistence
Range and endurance enable persistent detection, classification, and tracking
Get the full specs and details.
Specifications
Size and Weight
- Length: 8.2 ft / 2.5 m
- Wingspan: 15.7 ft / 4.8 m
- Max takeoff weight: 135 lb / 61 kg
- Max payload weight*: 39 lb / 17.7 kg
*Reduces endurance
Standard Payload Configuration
- Electro-optic imager: -1.1°–25° optical field of view; 4x digital zoom
- Mid-wave infrared imager: -2°–25° field of view
- Laser rangefinder
- IR marker
- Communications relay and AIS
Performance
- Endurance: Up to 16 hours
- Ceiling: up to 20,000 ft / 6,096 m
- Max horizontal speed: 90+ knots / 46.3 m/s
- Cruise speed: 60 knots
- Engine: 8 HP reciprocating engine with EFI; JP-5, JP-8
Program Status
17,000+ – flight hours
14 – deployments completed
8 – maritime MEU deployments
6 – land-based deployments
31 – systems delivered to USN and USMC
4 – international customers via NAVAIR FMS program
U.S. Marine Corps photo by Cpl. Adam Dublinske
Flexibility
The RQ-21A Blackjack was developed in partnership with the U.S. Department of the Navy to fill the requirement for a small tactical uncrewed aircraft system capable of operating from land and sea.
Communication
Encrypted command and control datalink enables a line-of-sight operating radius beyond 50 nm / 92.6 km, with electromagnetic shielding to support customized communications and radio frequency sensor payloads.
Mobility
The system is transportable via ship, cargo aircraft (V-22, C-130 or larger), cargo helicopters (CH-47, CH-53) and vehicles such as HMMWVs or JLTVs.
Customizable Payload Suite
Blackjack’s open payload architecture can be customized with imagers, communication systems, electronic warfare payloads, signals intelligence capabilities and other tools to give the warfighter a look ahead in operational environments.
Interoperability
Compliant with relevant NATO and industry standards to allow interoperability across joint, coalition, and allied forces.
Proven Experience
Our systems are backed by more than 1.3 million operational hours and deployed worldwide with international defense, government and commercial customers with the most demanding mission requirements.
Ready to learn more?
Related Systems
RQ-21A works with many Insitu systems.
Catalina
Power your media enterprise with Catalina server-side software – Insitu’s sophisticated multimedia server
Learn More
In the News
Related Stories
Insitu Announces its High Seas, Long Endurance Integrator VTOL Uncrewed Aircraft System at Navy League’s Sea-Air-Space Global Maritime Expo
Integrator VTOL launches vertically on ships or land without sacrificing payload capacity or endurance.
Read More »Insitu Sets Company Record for Longest Flight at 25.5 hours with its Integrator Uncrewed Aircraft System
Insitu, A Boeing Company, recently set a company record for the longest duration flight with a 25.5-hour sortie with its Integrator Uncrewed Aircraft System (UAS) on an operational mission.
Read More »U.S. Navy holds UAS wide-area mission demonstration
This event was a great opportunity to evaluate unmanned capability in a relevant environment
Read More »
ScanEagle
ScanEagle
The UAS that invented the agile ISR category
With over 1.3 million flight hours, ScanEagle is the industry’s most trusted long-endurance UAS.
Proven Experience
99 percent mission readiness rate (services) and best-in-class reliability
Flexibility
Runway-independent design easily operates from land or at sea
Secure Communications
Delivers stable, encrypted air-to-ground comms up to 55nm
Get the full specs and details.
Specifications
Size and Weight
- Max takeoff weight: 58 lb / 26.5 kg
- Max payload weight: 11 lb / 5 kg
- Payload power: up to 150 W
- Length: 5.6ft / 1.71m
- Wingspan: 10.2 ft / 3.1 m
Sensor and Data Options
- Turret: EO, EO950 (EO camera and EO telescope), MWIR, Dual Imager (EO and MWIR)
- Video Datalink: Analog, digital encrypted
- C2 Datalink: Encrypted, unencrypted
Performance
- Endurance: 18 hours
- Ceiling: 19,500 ft / 5,950 m
- Max horizontal speed: 80 knots / 41.2 m/s
- Engine: Heavy fuel (JP-5 or JP 8) or C-10 gasoline engine
Multiple Variants and Configurations Available
ScanEagle is currently available in Block E and Block F (ScanEagle 2) variants. Contact our team to learn more about what’s available with each.
Proven and Trusted
ScanEagle has been continuously deployed on land since 2004 and at sea since 2005, meeting the demanding mission requirements of international defense, government, and commercial customers.
Persistent ISR
ScanEagle provides persistent daytime and nighttime ISR in some of the world’s most extreme environments.
Payload Flexibility
Field-swappable payloads can be rapidly reconfigured to support a wide range of missions—electronic warfare, ISR, comms relay, overwatch and targeting.
Customizable
ScanEagle maximizes common architecture, reducing lifecycle and training costs. Our engineering and payload teams can custom-configure your aircraft to suit your mission
Ready to learn more?
Related Systems
Operate ScanEagle with these Insitu systems.
Catalina
Power your media enterprise with Catalina server-side software – Insitu’s sophisticated multimedia server
Learn More
In the News
Related Stories
Insitu Sets Company Record for Longest Flight at 25.5 hours with its Integrator Uncrewed Aircraft System
Insitu, A Boeing Company, recently set a company record for the longest duration flight with a 25.5-hour sortie with its Integrator Uncrewed Aircraft System (UAS) on an operational mission.
Read More »Insitu Pacific’s Uncrewed Next-gen Sensors Demonstrated at U.S. Army Exercise
Insitu Pacific demonstrated next generation sensor capabilities and autonomous technologies in California as part of the U.S. Army’s Project Convergence 2022 late last year.
Read More »QE-1 Squadron Completes 1 Year of Service
Brazilian QE-1 ScanEagle Squadron Harpia celebrated the completion of 1 year of service…
Read More »
Integrator Extended Range
Integrator Extended Range
Expanded capability, ultimate flexibility
Integrator with satellite-enabled beyond line of sight (SATCOM BLOS) extends flight distance potential and increases safety
Ultimate Flexibility
Access previously unreachable targets by eliminating line-of-sight restrictions
Safer Operations
Keep operators and deployed personnel at safer distances from dangerous environments
Fewer Bases
Reduce ground support equipment by consolidating hubs and eliminating spokes
Get the full specs and details.
Specifications
Size and Weight
- Length: 8.2 ft / 2.5 m
- Wingspan: 15.7 ft / 4.8 m
- Max takeoff weight: 165 lb / 74.8 kg
Performance
- Endurance: Up to 24 hours
- Ceiling: 20,000 ft / 6,096 m
- Max horizontal speed: 90+ knots / 46 m/s
- Cruise speed: 55 knots / 28 m/s
- Engine: EFI using JP-5/Jp-8 fuel
Sensors and Data
- EO telescope (high-zoom day FMV)
- Dual Imager (MWIR/EO – day & night FMV)
- ViDAR (maritime surface search)
- Laser designator/pointer/rangefinder
- Other integrated sensors
- On-board connectivity: Ethernet
Range

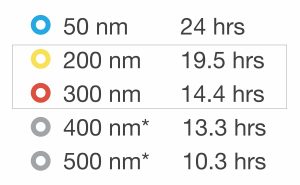

Time on Target (ToT) Estimates for Integrator Extended Range
- 400-500nm assumes suitable satcom footprint
Theater-Relevant Ranges
Achieves a range up to 9 times greater than standard tactical line-of-sight UAVs with an innovative BLOS Satellite Communications (SATCOM) mission kit. Ranges up to 500 nautical miles. Stays up to 19.5 hours of time on station.
Expanded Target Set
The field-swappable ER SATCOM mission
kit maximizes the full potential of Integrator’s endurance capability while expanding end user access to previously unreachable targets from geographically dispersed bases.
SATCOM Advances
Utilizes the latest global constellations of high throughput satellites and advanced onboard planar array antenna technology to achieve data rates up to 10 megabits per second with a NSA Type 1 encryption security option.
Multi-Mission Flexibility
Integrator’s suite of modular mission payloads can now extend over the horizon to deliver persistent, high-resolution imagery, SIGINT, and electronic warfare capabilities for broad operational and strategic effects.
Unparalleled ISR for Group 3 UAS
Integrator Extended Range delivers more affordable theater-level ISR on par with current Group 4 or 5 capabilities — with all the benefits of a Group 3 UAS.
Ready to learn more?
Related Systems
Operate Integrator Extended Range with these Insitu Systems.
Catalina
Power your media enterprise with Catalina server-side software – Insitu’s sophisticated multimedia server
Learn More
In the News
Related Stories
Unmanned Reconnaissance Aircraft above Drenthe
Defense is practicing with the X-300 Integrator reconnaissance system that has been part of the armed forces since 2019.
Read More »Insitu Announces Proliferated-Low Earth Orbit Satellite Control for Integrator UAS with 2,000 Nautical Mile Range
This capability enables Integrator to fly up to 2,000 Nautical Miles (NM) point-to-point with 27.5 hours of endurance, the longest range/endurance of any small UAS in its class.
Read More »Insitu’s keys for success in serving NATO Europe
Insitu Incorporated, a Boeing company, reached a milestone this year: 30 years of unmanned aircraft innovation excellence – and nearly 20 years of supporting NATO, helping it to project NATO power on land and at sea from the air. ESD’s Curtis Hand spoke with Insitu CEO Diane Rose about what is next for the company in terms of current and future operational theatres, warfare’s evolution, and new industrial partnerships and strategic alliances – all to strengthen NATO and its affiliates.
Read More »
Integrator
Integrator
One aircraft, infinite possibilities.
The Integrator is the most versatile UAS in its class, with a modular design to fit every mission.
Now available with VTOL.

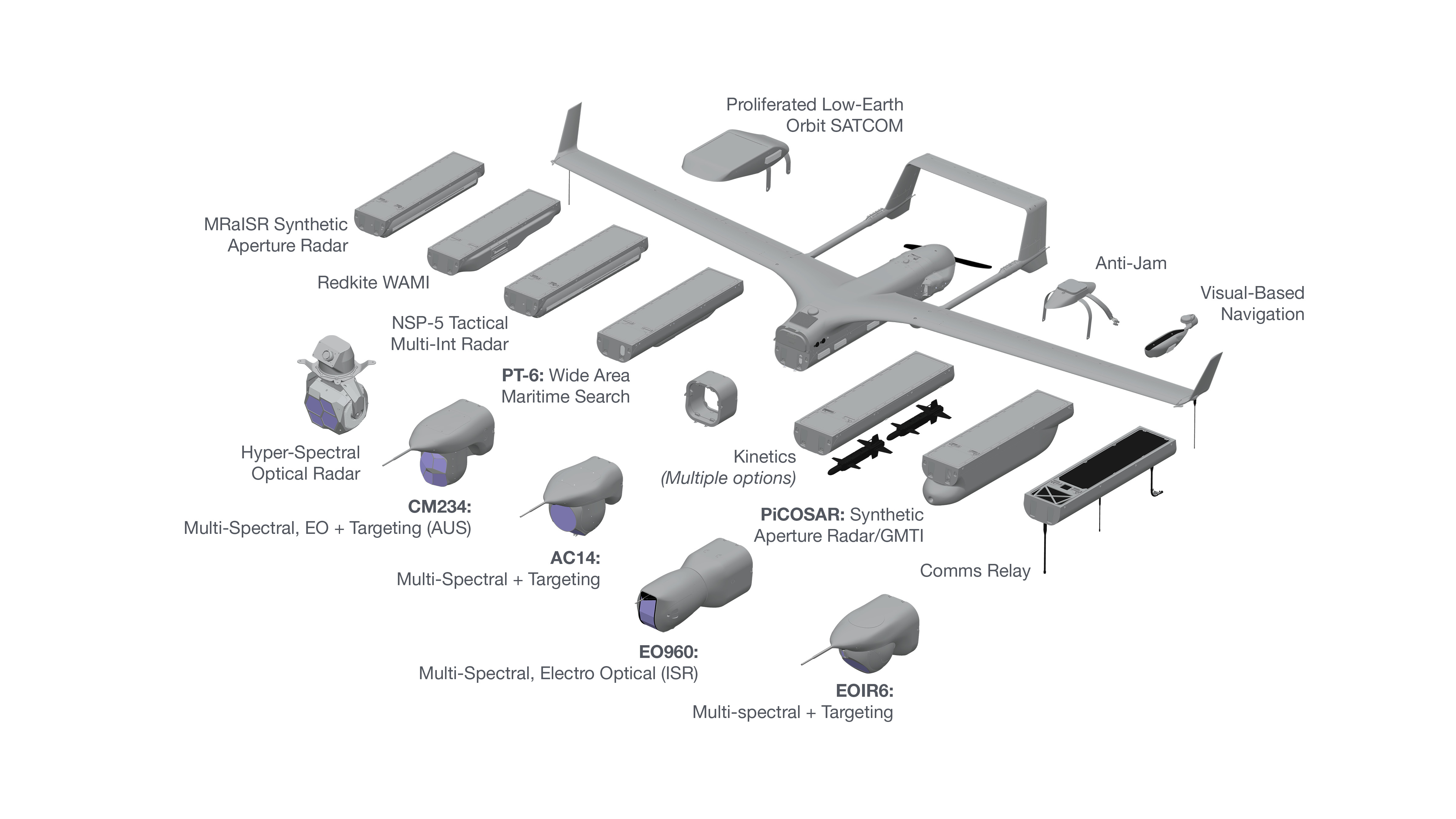

Customizable Payloads
Maximize every mission with six payload spaces and up to 40 pounds available
Small Footprint
No nets or runways required.
No-sacrifice VTOL kit available for current and future customers.
Multi-INT
Modularity supports a wide range of missions including electronic warfare, ISR and comms relay
Get the full specs and details.
Specifications
Size and Weight
- Length: 8.2 ft / 2.5m
- Wingspan: 16 ft / 4.9 m
- Max takeoff weight: 165 lb / 74.8 kg
- Max payload weight: 40 lb / 18 kg
Sensor Options
- EO telescope (high-zoom day FMV)
- Dual Imager (MWIR/EO day & night FMV)
- ViDAR (maritime surface search)
- Laser designator / pointer / rangefinder
- Other integrated sensors
Payload Integration
- Onboard power: 350 W for payloads
- Onboard connectivity: Ethernet
Performance
- Endurance: Up to 27.5 hours
- Ceiling: 19,500 ft / 5,944 m
- Max horizontal speed: 90+ knots / 46 m/s
- Engine: EFI using JP-5/JP-8 fuel
Trusted Performance
Integrator and its variants have been truly battle-tested, deployed around the globe, flying in the harshest environments for a variety of US and international partners.
Interoperability
Compliant with relevant NATO and industry standards to allow interoperability across joint, coalition and allied forces.
Encrypted Communication
Encrypted command and control data link enables a line-of-sight operating radius beyond 50 nm / 92.6 kms, with electromagnetic shielding to support customized communications and radio frequency sensor payloads.
Improved Mobility
Transport the Integrator system via ship, cargo aircraft (C-130, A400), cargo helicopters (CH-47, CH-53), and vehicles such as HMMWVs or JLTVs. Operate runway-free, from remote land or maritime environments.
Persistence
Range and endurance enable persistent detection, classification and tracking.
Extended Range Variant Available
Satellite-enabled, beyond-line-of-sight (SATCOM BLOS) communications on Integrator ER platform enable operators to fly a variety of field-swappable payloads over the horizon to deliver high-resolution imagery in real-time with up to 2000 nmi (point-to-point) range. Proliferated-Low Earth Orbit constellation SATCOM C2 now available as well.
Ready to learn more?
Related Systems
Operate Integrator with these configurable payloads.
Catalina
Power your media enterprise with Catalina server-side software – Insitu’s sophisticated multimedia server
Learn More
In the News
Related Stories
Insitu Launches UAS Center of Excellence in the UAE, Strengthening Bilateral Ties
The state-of-the-art facility will localize UAS Maintenance, Repair, and Overhaul (MRO), training, and other essential services for the UAE Armed Forces.
Read More »Unmanned Reconnaissance Aircraft above Drenthe
Defense is practicing with the X-300 Integrator reconnaissance system that has been part of the armed forces since 2019.
Read More »Insitu Announces Proliferated-Low Earth Orbit Satellite Control for Integrator UAS with 2,000 Nautical Mile Range
This capability enables Integrator to fly up to 2,000 Nautical Miles (NM) point-to-point with 27.5 hours of endurance, the longest range/endurance of any small UAS in its class.
Read More »
